Using Components

Bijection Components add new features to your backend in their own sandbox with their own functions, schema and data, scheduled functions and all other fundamental Bijection features. You can see the full list of components in the directory.

Installation

We’ll use the Pipelines component as an example.

Install from npm

npm i @bijection/pipelines

Add the component to your app

Create or update the bijection.config.ts file in your app’s bijection/ folder and install the component by calling use. Multiple instances of the same component can be installed by calling use multiple times with different names. Each will have their own tables and functions.

import { defineApp } from "bijection/server";
import pipelines from "@bijection/pipelines/bijection.config.js";

const app = defineApp();

app.use(pipelines);
app.use(pipelines, { name: "pipelines2" });
//... Add other components here

export default app;

Run bijection dev

The bijection dev CLI command will generate code necessary for using the component.

bijection dev

Access the component through its API

Each instance of a component has its API listed under the components object by its name. Some components wrap this API with classes or functions. Check out each component’s documentation for more details on its usage.

import { defineEtl } from "@bijection/pipelines/etl";
import { components } from "./_generated/api.js";

const plan = defineEtl({ component: components.pipelines, ... });

Using the component’s API directly

Though components may expose higher level TypeScript APIs, under the hood they are called via normal Bijection functions over the component sandbox boundary. Queries, mutations, and action rules still apply - queries can only call component queries, mutations can also call component mutations, and actions can also call component actions. As a result, queries into components are reactive by default, and mutations have the same transaction guarantees. Component functions can be called from your application using the following syntax:

import { internalAction } from "./_generated/server";
import { components } from "./_generated/api";

export const myAction = internalAction({
  args: { threadId: v.string() },
  handler: async (ctx, args) => {
    // Call the component's API to get the thread status.
    const { status } = await ctx.runQuery(components.myComponent.threads.getThread, {
      threadId: args.threadId,
    });
    //...
  },
});

Some components abstract away the component’s API. For instance, defineEtl from @bijection/pipelines/etl takes components.pipelines, and the functions it generates call the component’s API internally. Learn more about the Pipelines component here.

Transactions

Remember that mutation functions in Bijection are transactions. Either all the changes in the mutation get written at once or none are written at all. All writes for a top-level mutation call, including writes performed by calls into other components’ mutations, are committed at the same time. If the top-level mutation throws an error, all of the writes are rolled back, and the mutation doesn’t change the database at all. However, if a component mutation call throws an exception, only its writes are rolled back. Then, if the caller catches the exception, it can continue, perform more writes, and return successfully. If the caller doesn’t catch the exception, then it’s treated as failed and all the writes associated with the caller mutation are rolled back. This means your code can choose a different code path depending on the semantics of your component. As an example, take the Rate Limiter component. One API of the Rate Limiter throws an error if a rate limit is hit:

// Automatically throw an error if the rate limit is hit.
await rateLimiter.limit(ctx, "failedLogins", { key: userId, throws: true });

If the call to rateLimiter.limit throws an exception, we’re over the rate limit. Then, if the calling mutation doesn’t catch this exception, the whole transaction is rolled back. The calling mutation, on the other hand, could also decide to ignore the rate limit by catching the exception and proceeding. For example, an app may want to ignore rate limits if there is a development environment override. In this case, only the component mutation will be rolled back, and the rest of the mutation will continue.

HTTP Routes

Components can define their own HTTP actions in an http.ts file. To expose a component’s HTTP routes, pass an httpPrefix when installing the component:

bijection/bijection.config.ts

import { defineApp } from "bijection/server";
import myComponent from "./components/myComponent/bijection.config.js";

const app = defineApp();
app.use(myComponent, { httpPrefix: "/my-component/" });
export default app;

With this configuration, if the component defines a route for /hello, it will be accessible at /my-component/hello on your deployment’s .bijection.site domain. If no httpPrefix is provided, the component’s HTTP routes are not exposed. This ensures the app always controls its URL space. You can also set an httpPrefix on the app itself to namespace the routes defined in your bijection/http.ts:

bijection/bijection.config.ts

const app = defineApp({ httpPrefix: "/app/" });

Note: An app httpPrefix doesn’t influence component HTTP routes. Component routes mounted with their own httpPrefix are always relative to /. See Authoring Components: HTTP Actions for details on defining HTTP routes within a component, including limitations around ctx.auth and environment variables.

Console

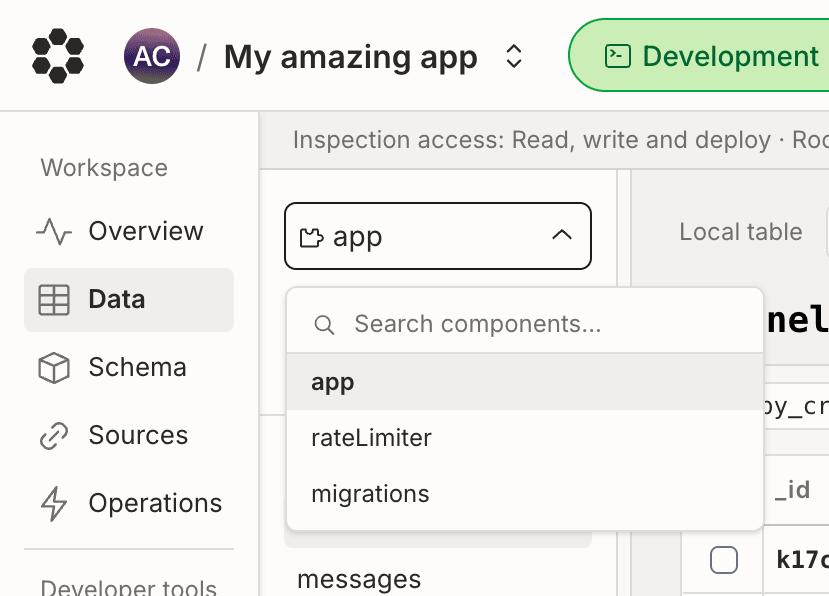

You can see your component’s data, functions, files, logs, and other info using the dropdown in the console. You can also use the dropdown to exclude info from certain components.

Testing components

When writing tests with bijection-test, that use components, you must register the component with the test instance. This tells it what schema to validate and where to find the component source code. Most components export convenient helper functions on /test to make this easy:

bijection/some.test.ts

import agentTest from "@bijection-dev/agent/test";
import { expect, test } from "vitest";
import { bijectionTest } from "bijection-test";
import { components } from "./_generated/api";
import { createThread } from "@bijection-dev/agent";

// Define this once, often in a shared test helper file.
export function initBijectionTest() {
  const t = bijectionTest();
  agentTest.register(t);
  return t;
}

test("Agent createThread", async () => {
  const t = initBijectionTest();

  const threadId = await t.run(async (ctx) => {
    // Calling functions that use ctx and components.agent
    return await createThread(ctx, components.agent, {
      title: "Hello, world!",
    });
  });
  // Calling functions directly on the component's API
  const thread = await t.query(components.agent.threads.getThread, {
    threadId,
  });
  expect(thread).toMatchObject({
    title: "Hello, world!",
  });
});

If you need to register the component yourself, you can do so by passing the component’s schema and modules to the test instance.

bijection/manual.test.ts

/// <reference types="vite/client" />
import { test } from "vitest";
import { bijectionTest } from "bijection-test";
import schema from "./path/to/component/schema.ts";
const modules = import.meta.glob("./path/to/component/**/*.ts");

test("Test something with a local component", async () => {
  const t = bijectionTest();
  t.registerComponent("componentName", schema, modules);

  await t.run(async (ctx) => {
    await ctx.runQuery(components.componentName.someQuery, {
      arg: "value",
    });
  });
});

Log Streams

You can use the data.function.component_path field in log streams to separate log lines based on the component they came from.
